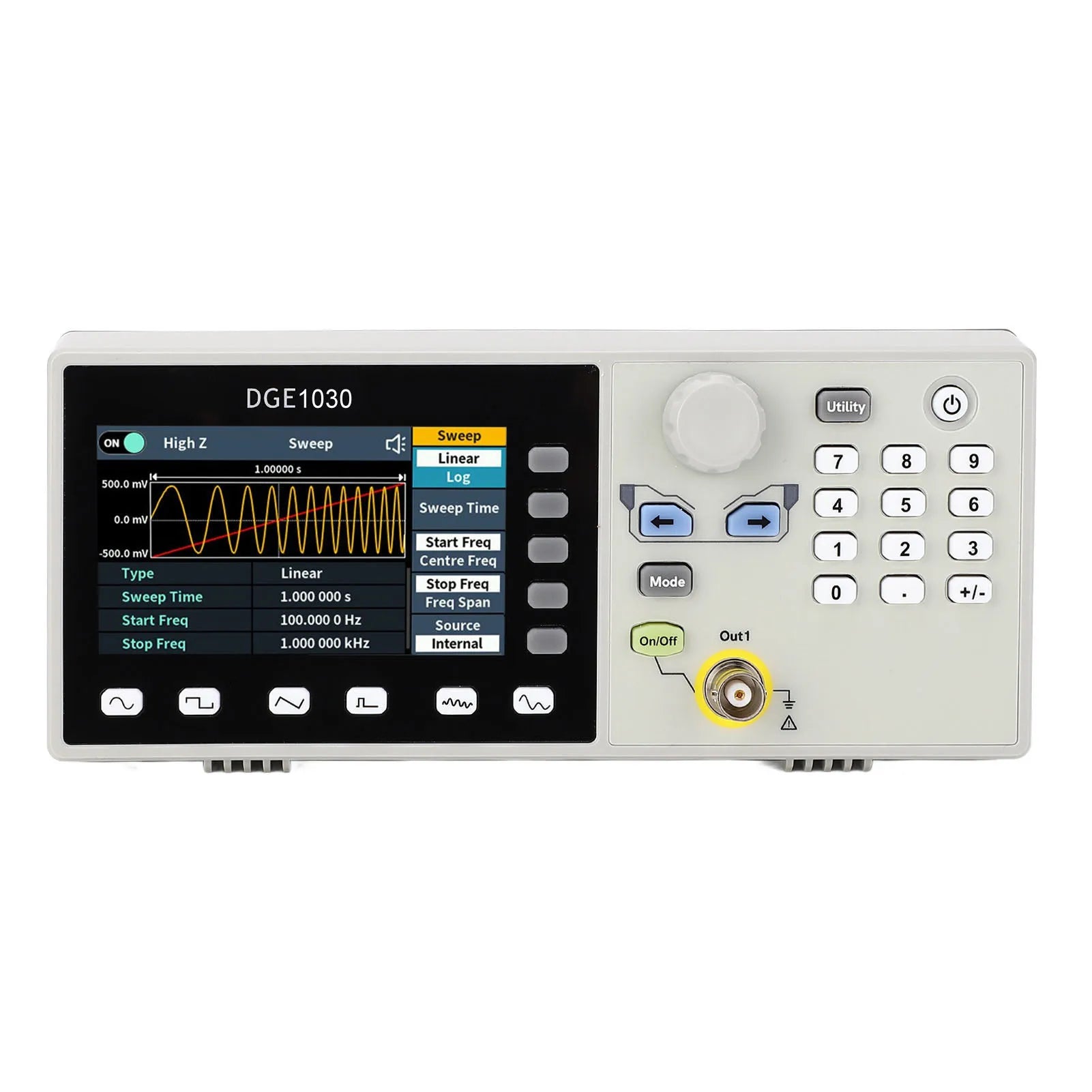

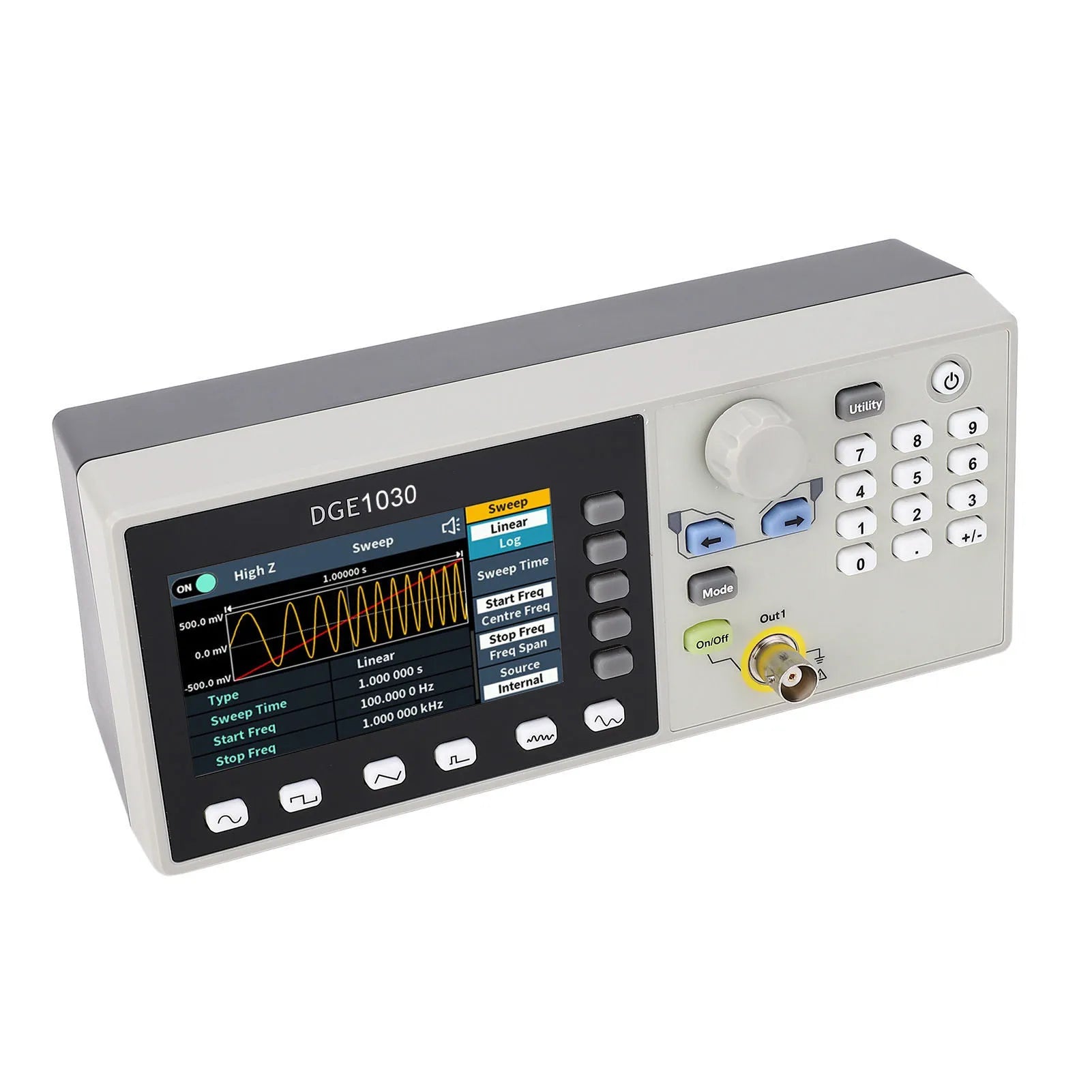

Waveform Generator Arbitrary Waveform Generator 1μHz to 30MHz Range 1uHz Resolution Single Generator Frequency Generator
Waveform Generator Arbitrary Waveform Generator 1μHz to 30MHz Range 1uHz Resolution Single Generator Frequency Generator
Couldn't load pickup availability
SPECIFICATIONS
Battery Included: No
Brand Name: YOUTHINK
Certification: CE
Choice: yes
DIY Supplies: Electrical
Hign-concerned Chemical: None
Origin: Mainland China

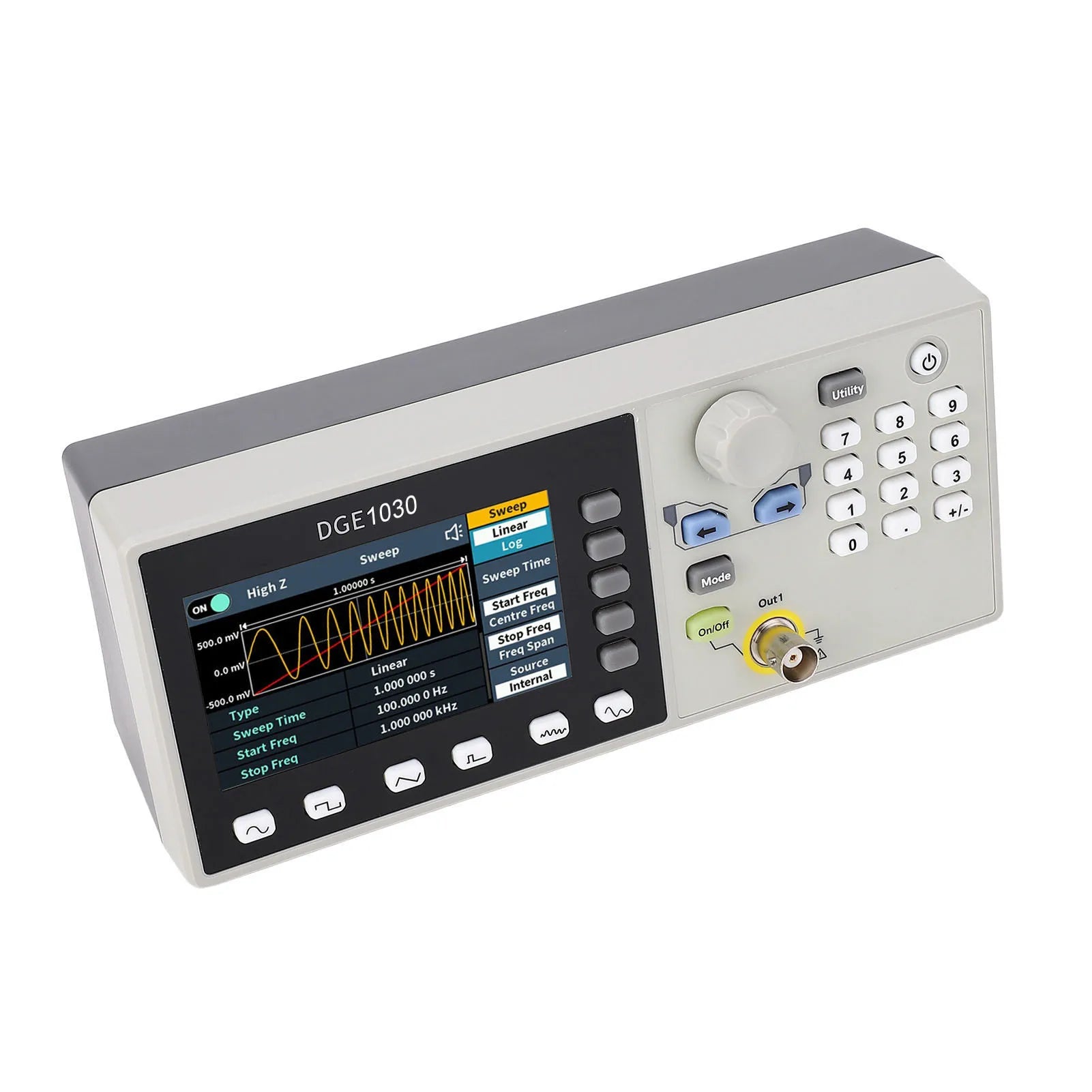

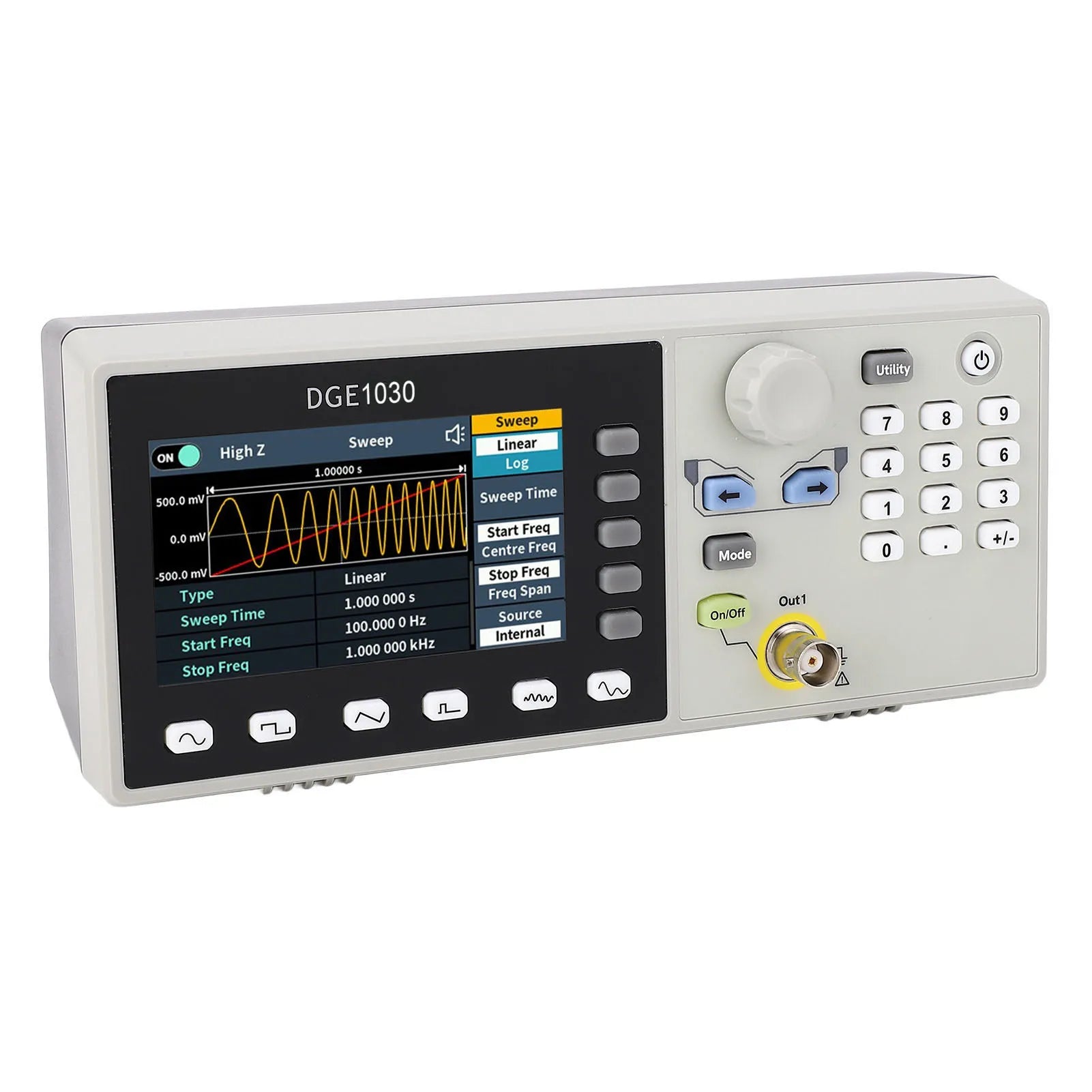

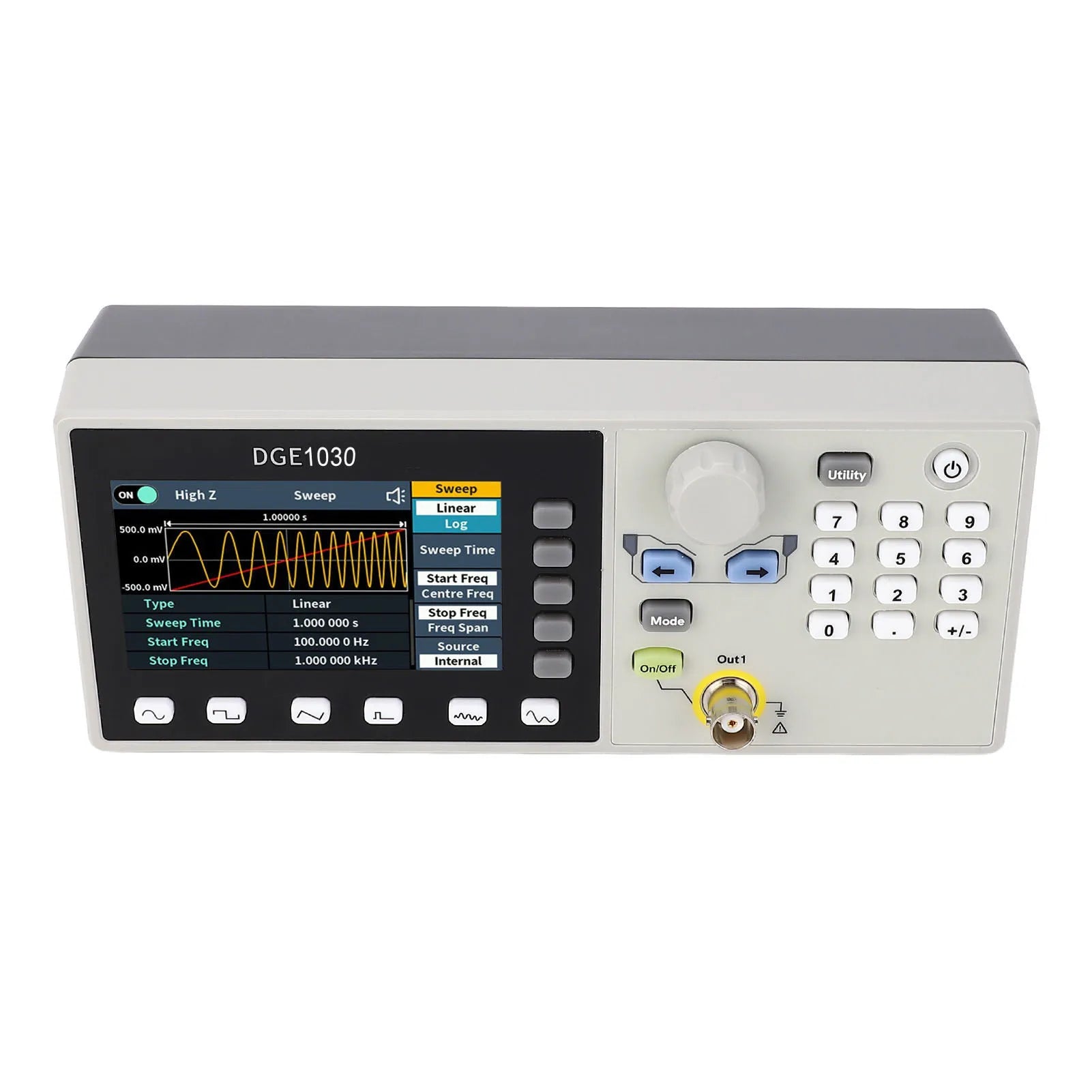

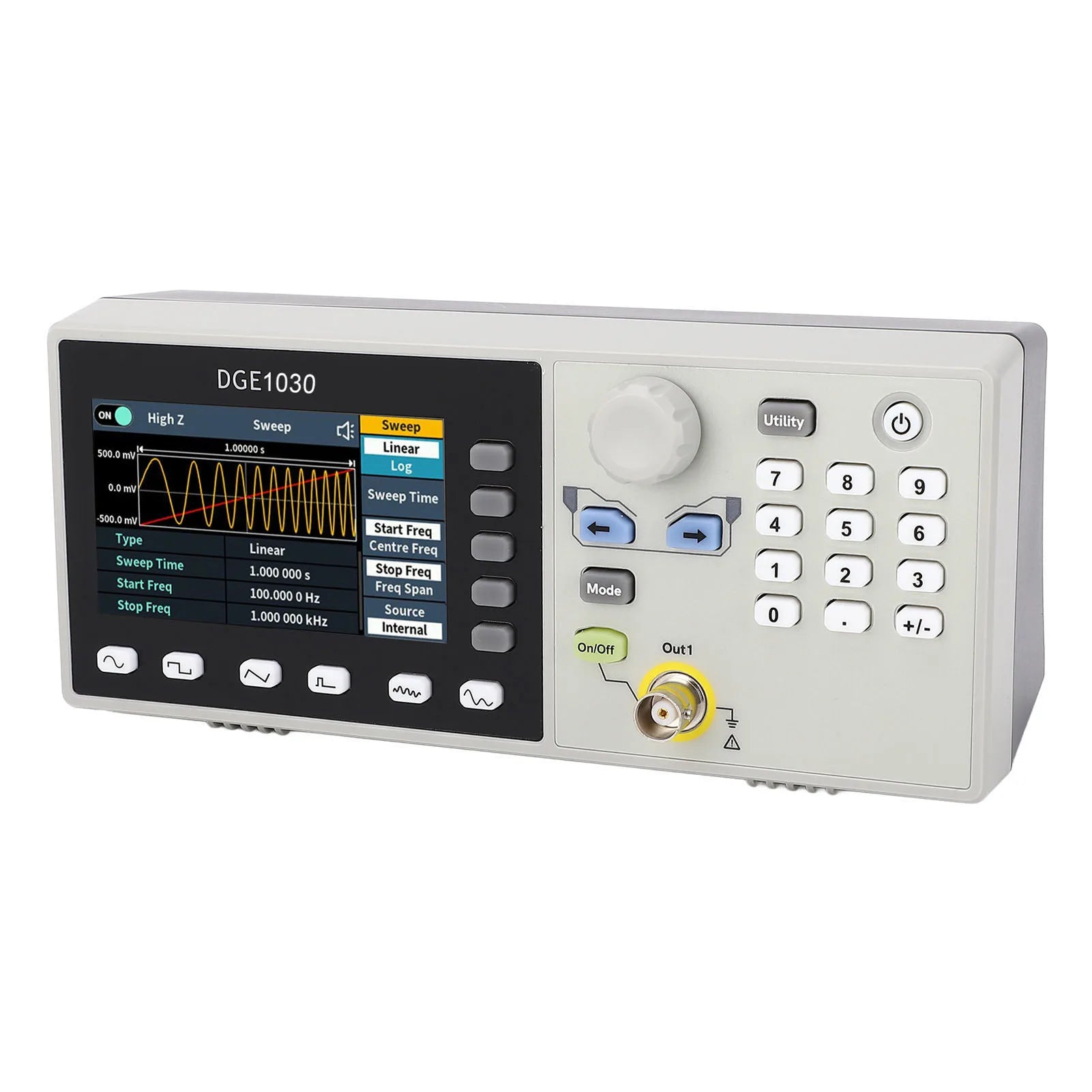

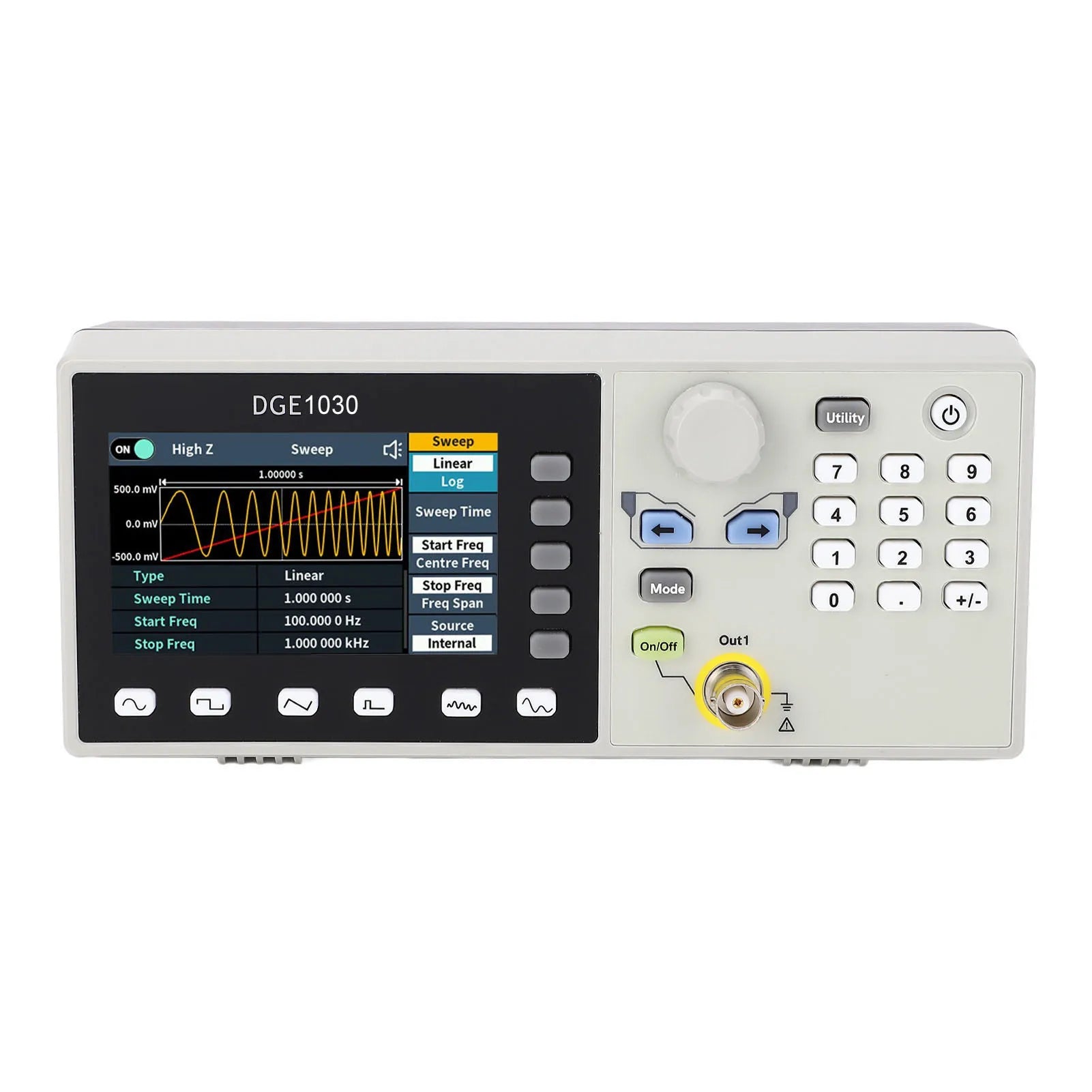

Arbitrary Waveform Generator 1μHz to 30MHz Range 1uHz Resolution Single Signal Generator
Specification:
Item Type: Arbitrary Waveform GeneratorMaterial: ABS
Channel: 1
Frequency Output: 30MHz
Sampling Rate: 125MS/s
Vertical Resolution: 14 bits
Waveforms:
Standard Waveform: Sine, square, pulse, slope, and noise
Arbitrary Waveform: exponential rise, exponential fall, sin (x)/x, step wave, etc., a total of 160 built-in waveforms and user-defined arbitrary waveforms
Sine Wave: 1uHz-30MHz
Square Wave: 1uHz-15MHz
Pulse Wave: 1uHz-15MHz
Ramp Wave: 1uHz-1MHz
Noise Wave: 20MHz(-3dB, typical)
Arbitrary Waveform: 1uHz-10MHz
Frequency Resolution: 1uHz or 7 digits
Frequency Stability: ±30 ppm at 0±40℃
Frequency Aging Rate: 30 ppm per year
Arbitrary：
Waveform Length: 2-8K points
Sampling Rate: 125MSa/s
Modulation Type: AM, FM, PM, FSK
Internal Modulation Frequency: 2mHz-100kHz
Display: 3.6 inch TFT LCD
Resolution: 480 x 272
Display Color: 65536 colors, 16 bit, TFT

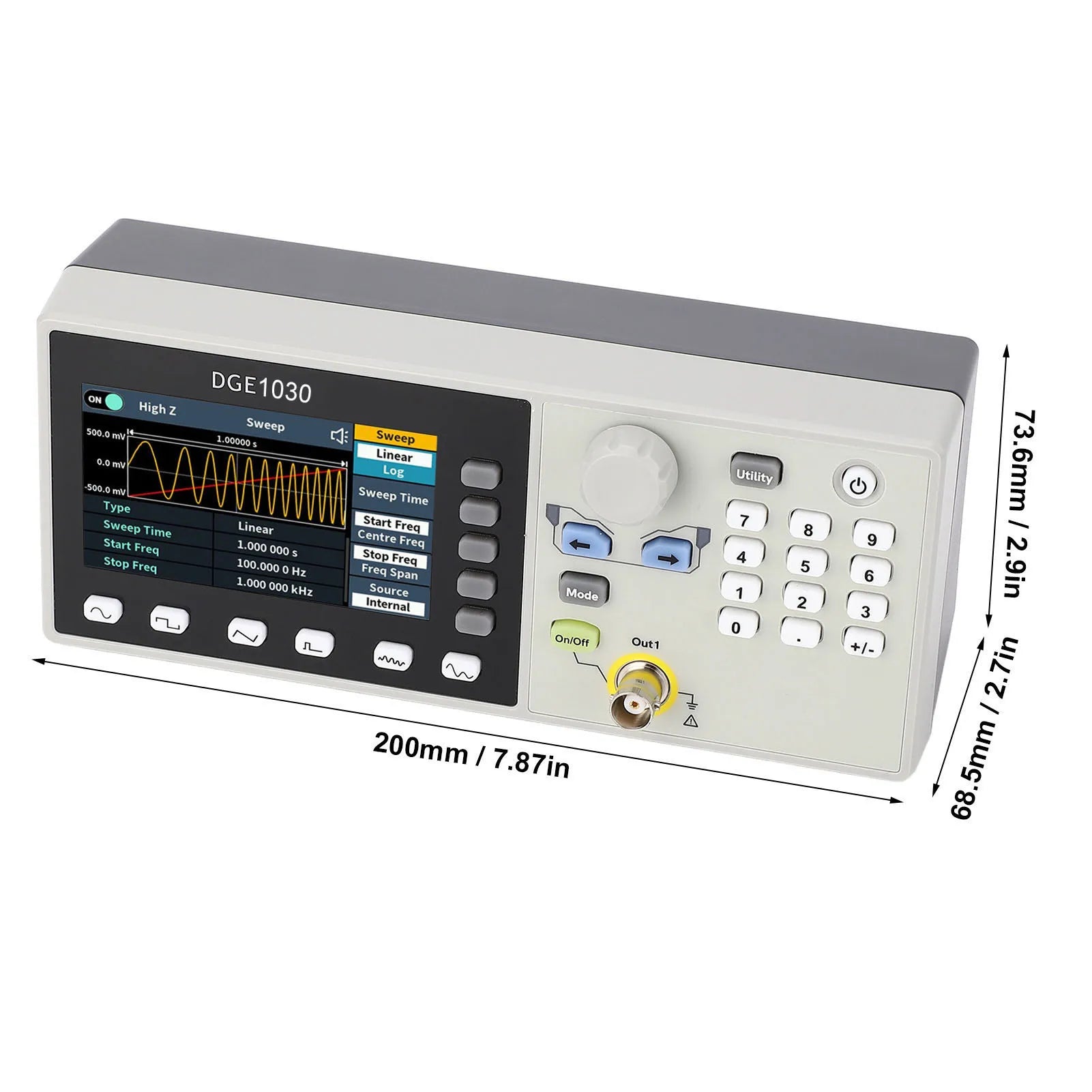

Product Size: Approx. 200 x 68.5 x 73.6mm / 7.87 x 2.7 x 2.9in
Features:
1. High frequency stability: The single signal generator has excellent frequency stability, with an impressive ±30 ppm at 0±40℃. This ensures that the equipment is accurate over a long period of use and use.
2. Detailed frequency characteristics: The signal generator offers a range of frequency characteristics from 1 μHz to 30MHz, with a frequency resolution of up to 1 UHz, which can generate different waveforms and ensure that your signal needs are always met.
3. Variable waveform support: Support sine wave, sqw, slope wave, pulse wave and noise wave as well as more than 160 other types of arbitrary waveform, such as sine wave, exponential rise and fall, electrocardiogram, Gaussian wave and half positive wave, the device is widely used.
4. Superior amplitude characteristics: It displays a comprehensive set of amplitude characteristics with high amplitude accuracy and resolution. It supports a wide output amplitude range, giving you complete control over the signal.
How to Use:

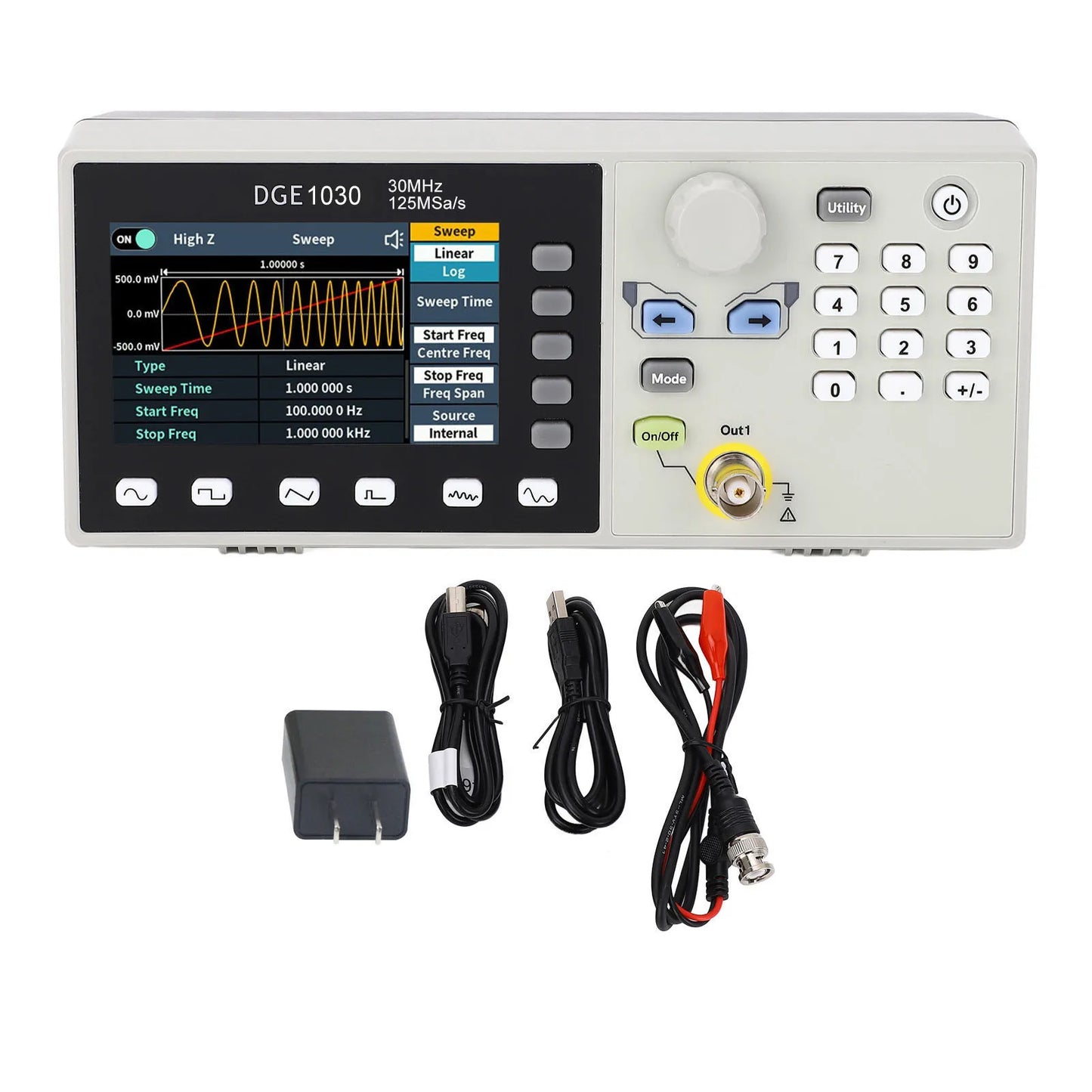

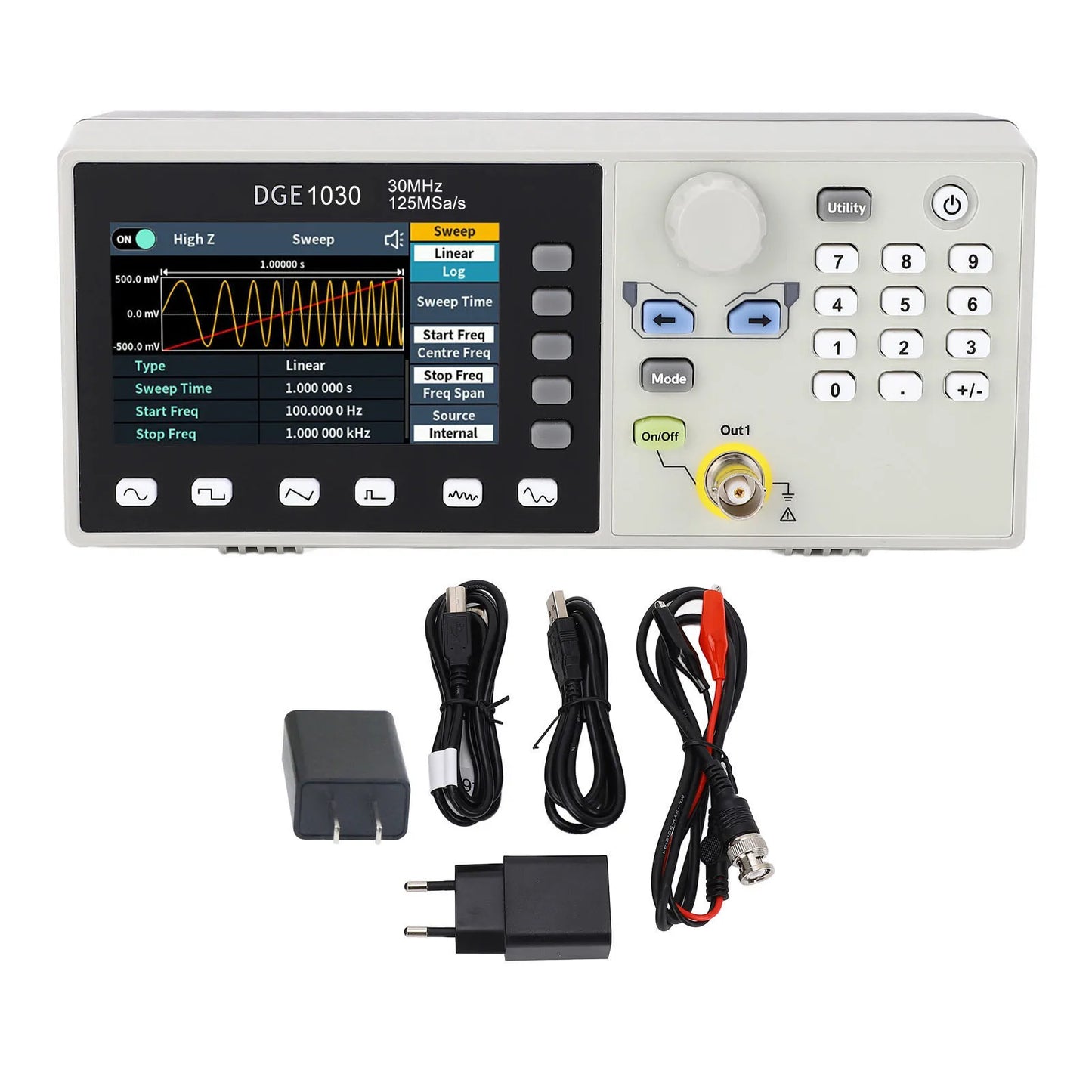

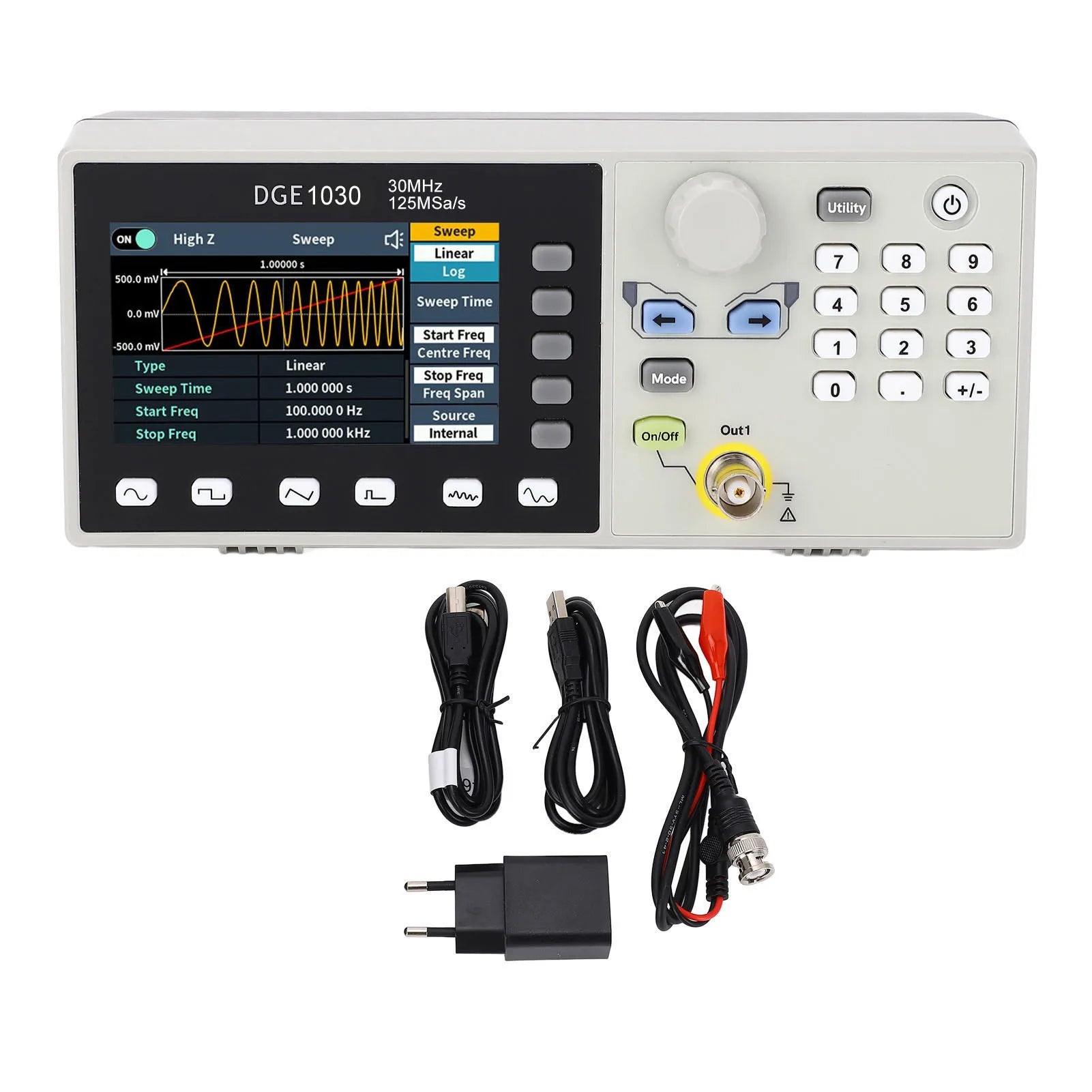

Install and use directlyPackage List:
1 x Signal Generator
1 x Plug
2 x Manual
2 x Test Line
1 x Power Line
